Fabriano 3Tr/ 4hp Floor Ceiling Type Commercial Air Conditioner 0103SZ020026 0103SZ020027 FIFC36HWI32
SKU: 0103SZ020026
3D Air Swing - No matter which corner you are in the room, you can feel the cooling, more convenient and comfortable.
Flexible Installation - The drain pan allows two installation ways, to meet the demand of different house types. Installation on the floor will prevent heat loss and installation on the ceiling will save space.
| Capacity | 3Tr Floor Ceiling Type | ||
| Indoor model | FIFC36HWI32-1 | ||

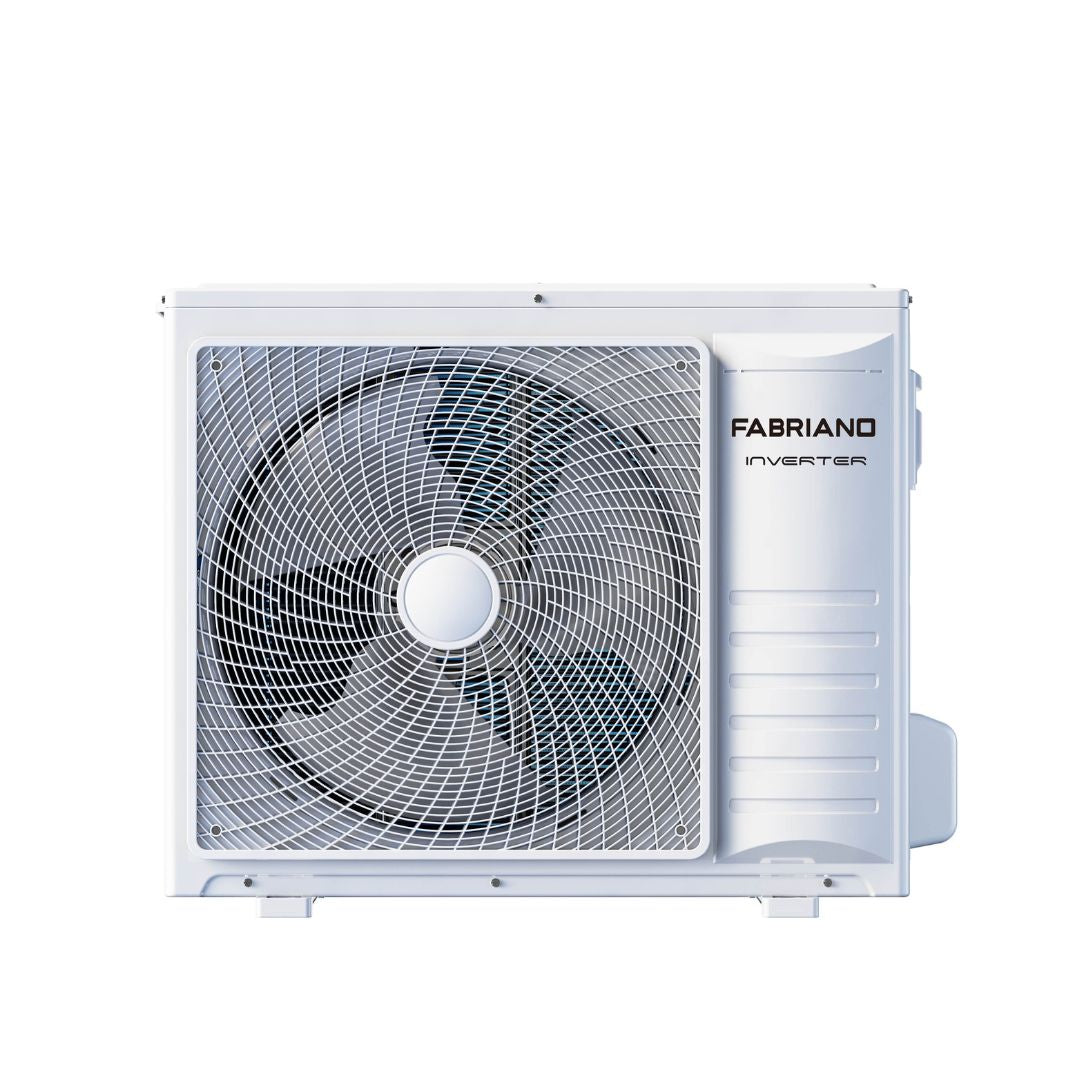

| Outdoor model | FIFC36HWI32-0 | ||
| Power supply (Indoor) | V/Ph/Hz | 230/1/60 | |
| Power supply (Outdoor) | V/Ph/Hz | 230/1/60 | |
| Max. input consumption | W | 4300 | |
| Max. input current | A | 19.0 | |
| Cooling (Declare value for Thailand) |
Capacity | W | 10600 |
| Capacity range | W | 3600-11500 | |
| Input Power | W | 3140 | |
| Input Power range | W | 800-4000 | |
| Current | A | 13.9 | |
| EER | W/W | 3.38 | |
| SEER | / | 17.95 | |
| Indoor fan motor | Model | / | SIC-101CW-F1181-2 |
| Qty | / | 1 | |
| Output | W | 181 | |
| Capacitor | uF | / | |
| Speed(Hi/Med/Lo) | r/min | 1250/1000/900 | |
| Indoor coil | Number of rows | 3 | |
| Tube pitch(a)*row pitch(b) | mm | 21×13.6 | |
| Fin spacing | mm | 1.5 | |
| Fin type | Hydrophilic aluminium | ||
| Tube outside dia.and type | mm | Ф7, innergroove tube | |
| Coil (LxHxW) | mm | 1200×294×40.8 | |
| Number of circuits | / | 7 | |
| Indoor air flow Rated(Hi/Med/Lo) | m3/h | 2050/1600/1400 | |
| Indoor air flow Rated(Hi/Med/Lo) | CFM | 1205/941/823 | |
| Indoor noise level Rated (Sound pressure) (Hi/Med/Lo) | dB(A) | 53/48/45 | |
| Indoor unit | Dimension (WxHxD) | mm | 1580×680×230 |
| Packing(WxHxD) | mm | 1690×820×350 | |
| Net/Gross weight | kg | 46/54 | |
| Drainage water pipe diameter | mm | ODΦ25 | |
| Operation temperature | ℃ | 16~30 | |
| Compressor | Type | ROTARY | |
| Capacity | Btu/h | 34163 | |
| Input | W | 2765 | |
| Rated current(RLA) | A | 5.38 | |
| Outdoor fan motor | Output | W | 102 |
| Capacitor | μF | / | |
| Speed (Hi) | r/min | 920 | |
| Outdoor coil | Number of rows | 2 | |
| Tube pitch(a)* row pitch(b) | mm | 21x21.65 | |
| Fin spacing | mm | 1.5 | |
| Fin type | Hydrophilic aluminium | ||
| Tube outside dia.and type | mm | Ф7.94, innergroove tube | |
| Coil (LxHxW) | mm | 975×714×43.3 | |
| Number of circuits | 5 | ||
| Outdoor noise level Rated (Sound pressure) Hi | dB(A) | 58 | |
| Outdoor unit | Dimension(WxHxD) | mm | 900×750×340 |
| Packing(WxHxD) | mm | 1060×820×450 | |
| Net/Gross weight | kg | 55/59 | |
| Refrigerant type/Quantity | Type | R32 | |
| Charged volume | kg | 1.80 | |
| Design pressure | MPa | 4.3/1.6 | |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ9.52/Φ15.88(3/8'/5/8') |
| Max. pipe length | m | 50 | |
| Max. difference in level | m | 30 | |
| Ambient temperature | Cooling | ℃ | -7～48 |
